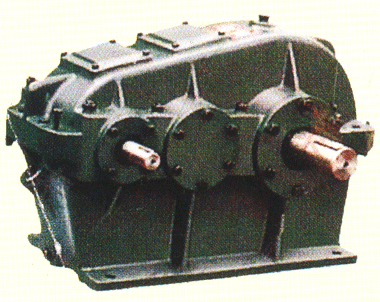

ZL 型齒輪減速機
尺寸 型號 | 中心距 | 中心高 | 外形尺寸 | 地腳尺寸 | D2 | 最大 質(zhì)量 (kg) | A | H0 | L | B | H | L1 | *L2 | L3 | n-d | B1 | B3 | L4 | L5 | L6 | L7 | D2 | ZL25 | 250 | 200-0.5 | 560 | 256 | 398 | 435 | -35 | 120 | 6-M20 | 256 | 210 | -5 | 175 | 205 | - | 25 | 135 | ZL35 | 350 | 250-0.5 | 720 | 316 | 493 | 585 | -40 | 135 | 316 | 260 | 0 | 255 | 255 | - | 230 | ZL42.5 | 425 | 300-0.5 | 860 | 346 | 588 | 705 | -39 | 149 | 346 | 280 | 10 | 275 | 335 | - | 305 | ZL50 | 500 | 350-0.5 | 1035 | 400 | 688 | 850 | -58 | 185 | 8-M24 | 400 | 330 | 30 | 290 | 275 | 150 | 75 | 490 | ZL60 | 600 | 400-0.5 | 1185 | 460 | 821 | 945 | -8 | 190 | 460 | 390 | 30 | 370 | 310 | 180 | 725 | ZL65 | 650 | 450-0.5 | 1300 | 500 | 916 | 1025 | 8 | 205 | 8-M30 | 500 | 420 | 55 | 395 | 325 | 200 | 980 | ZL75 | 750 | 500-0.5 | 1460 | 570 | 1016 | 1200 | -18 | 214 | 570 | 480 | 25 | 485 | 370 | 240 | 1390 | ZL85 | 850 | 550-0.5 | 1655 | 620 | 1116 | 1320 | 12 | 251 | 8-M36 | 620 | 530 | 65 | 505 | 445 | 250 | 1910 | ZL100 | 1000 | 650-0.5 | 1910 | 710 | 1306 | 1550 | 22 | 265 | 710 | 610 | 75 | 595 | 510 | 320 | 2730 | ZL115 | 1150 | 750-0.5 | 2190 | 785 | 1496 | 1770 | 42 | 295 | 8-M42 | 785 | 700 | 105 | 655 | 595 | 380 | 4000 | ZL130 | 1300 | 850-0.5 | 2460 | 845 | 1690 | 2015 | 42 | 317 | 845 | 740 | 105 | 740 | 670 | 450 | 5430 |
| 尺寸 型號 | 高速軸端 | 低速軸端 | D | b | t | L | s | S1 | D1 | b1 | t1 | L1 | T | T1 | ZL25 | 25 | 8 | 27.5 | 55 | 235 | 245 | 40 | 12 | 42.8 | 70 | 250 | 160 | ZL35 | 30 | 8 | 32.5 | 55 | 265 | 275 | 55 | 16 | 58.5 | 85 | 305 | 190 | ZL42.5 | 35 | 10 | 37.8 | 55 | 280 | 290 | 70 | 20 | 74.2 | 105 | 355 | 210 | ZL50 | 45 | 14 | 48.2 | 70 | 325 | 340 | 85 | 24 | 90 | 115 | 390 | 235 | ZL60 | 50 | 16 | 53.5 | 85 | 375 | 386 | 100 | 28 | 105.7 | 140 | 450 | 270 | ZL65 | 50 | 16 | 53.5 | 85 | 395 | 406 | 110 | 32 | 116.5 | 140 | 470 | 290 | ZL75 | 60 | 18 | 63.9 | 105 | 450 | 463 | 130 | 36 | 137.2 | 165 | 540 | 325 | ZL85 | 70 | 20 | 74.2 | 105 | 490 | 500 | 140 | 36 | 147.2 | 180 | 580 | 350 | ZL100 | 80 | 24 | 85 | 125 | 560 | 567 | 170 | 40 | 178.5 | 200 | 655 | 395 | ZL115 | 90 | 24 | 95 | 140 | 610 | 620 | 200 | 45 | 209.7 | 240 | 735 | 435 | ZL130 | 100 | 28 | 105.7 | 160 | 660 | 670 | 220 | 50 | 231 | 280 | 805 | 465 |
|
|
