TCS型垂直軸軸裝減速器
TCS型垂直軸軸裝減速器適用范圍及標記方法
一、概述
TCS是TC的變型產品,同樣適用于起重、運輸、冶金、礦山,石油化工、建筑等行業的傳動機構。
二、型號、裝配型式及表示方法
1.型號:10、12、16、20、25

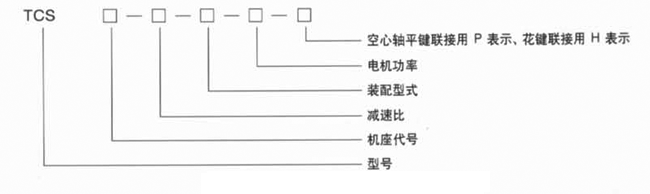

2.標記方法:
三、技術參數及外形尺寸

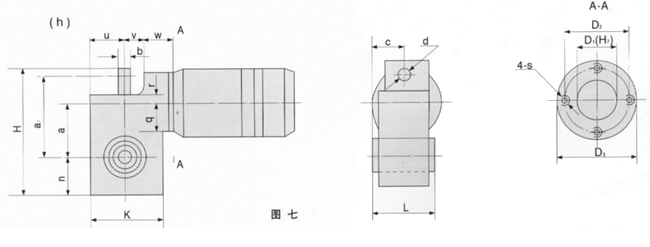

1.外形及安裝尺寸
表6
機座號 | L | K | H | C | U | W | V | a | a1 | n | q | r | d | b | D1 | D2 | D3 | S | 重量Kg |
TCS10 | 208 | 274 | 490 | 104 | 137 | 40 | 125 | 225 | 325 | 127 | 86 | 56 | 22 | 26 | 132 | 152 | 172 | M12 | 75 |
TCS12 | 255 | 346 | 612 | 127.5 | 173 | 45 | 150 | 280 | 406 | 160 | 101.5 | 70 | 26 | 36 | 160 | 180 | 203 | M16 | 142 |
TCS16 | 264 | 400 | 760 | 132 | 200 | 55 | 180 | 355 | 485 | 220 | 104 | 85 | 34 | 46 | 160 | 180 | 208 | M16 | 210 |
TCS20 | 318 | 500 | 930 | 159 | 250 | 55 | 220 | 470 | 625 | 250 | 140 | 100 | 40 | 50 | 210 | 180 | 280 | M16 | 350 |
TCS25 | 356.5 | 620 | 1160 | 178.25 | 350 | 75 | 275 | 580 | 777 | 310 | 180 | 125 | 40 | 70 | 240 | 240 | 320 | M20 | 820 |

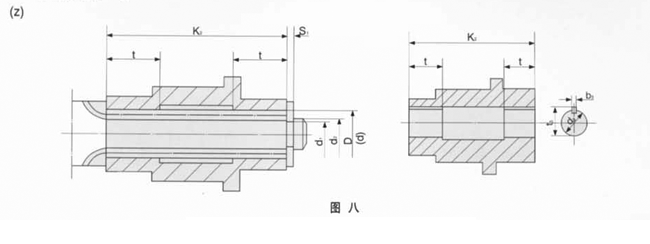

空心輸出軸聯接尺寸
機座代號 | 花鍵 | 平鍵 |
花鍵副 | 內花鍵大徑D | 外花鍵大徑d | k2 | t | S1 | d1 | d2 | d3 | b3 | t3 |
10 | INT/EXT31Z×2m×30p×6H/6h | 65 | 64 | 208 | 60 | 2 | 57 | 60 | 50 | 14 | 53.8 |
12 | INT/EXT35Z×3m×30p×6H/6h | 85.5 | 84 | 255 | 65 | 2.5 | 75 | 78 | 60 | 18 | 64.4 |
16 | INT/EXT35Z×3m×30p×6H/6h | 109.5 | 108 | 264 | 75 | 2.5 | 96.5 | 100 | 90 | 25 | 95.4 |
20 | 318 | 85 | 2.5 | 96.5 | 100 | 100 | 28 | 106.4 |
25 | 356.5 | 95 | 2.5 | 96.5 | 100 | 100 | 28 | 106.4 |
用戶根據需要,從表中可選 用小一號或更小的花鍵副
承載能力:
2.工作級別為M5時,減速器承載能力表
公稱傳動比i | 公稱傳速r/min | 規格 |
輸入n1 | 輸出n2 | 10 | 12 | 16 | 20 | 25 |
公稱輸入功率 P KW |
22.4 | 1500 | 66 | 9.1 | 22.8 | 38.9 | 81 | 96 |
1000 | 44 | 6.1 | 15.2 | 25.9 | 54 | 64 |
750 | 33 | 4.50 | 11.4 | 19.5 | 40 | 48 |
25 | 1500 | 60 | 8.3 | 21.5 | 35 | 70 | 89 |
1000 | 40 | 5.5 | 16.5 | 23.3 | 46.5 | 59 |
750 | 30 | 4.1 | 11 | 17.5 | 35 | 44.5 |
28 | 1500 | 53.5 | 7.8 | 19.2 | 30.3 | 67 | 82 |
1000 | 35.5 | 5.2 | 12.5 | 20 | 44.5 | 54.5 |
750 | 26.5 | 3.9 | 9.6 | 15.2 | 33.5 | 41 |
31.5 | 1500 | 47.5 | 7.8 | 17.9 | 27.4 | 60 | 75 |
1000 | 31.5 | 5.2 | 11.9 | 18.2 | 40 | 50 |
750 | 23.5 | 3.9 | 9 | 13.7 | 30 | 37 |
35.5 | 1500 | 42 | 6.9 | 15.2 | 25.8 | 50 | 70 |
1000 | 28 | 4.6 | 10.1 | 17.2 | 33 | 46 |
750 | 21 | 3.5 | 7.6 | 12.9 | 25 | 35 |
40 | 1500 | 37.5 | 6.2 | 13.5 | 23 | 40 | 60 |
1000 | 25 | 4.1 | 9 | 15 | 26.5 | 40 |
750 | 18.3 | 3.1 | 6.7 | 11.5 | 20 | 30 |
45 | 1500 | 33 | 5.3 | 12.0 | 19.5 | 37 | 54 |
1000 | 22 | 3.5 | 8 | 13 | 24.5 | 36 |
750 | 16.5 | 2.7 | 6 | 10 | 18.5 | 27 |
50 | 1500 | 30 | 5.1 | 10.8 | 19.5 | 35 | 51 |
1000 | 20 | 3.4 | 7.2 | 13 | 23 | 34 |
750 | 15 | 2.5 | 5.4 | 10 | 17.5 | 25.5 |
56 | 1500 | 26.5 | 4.3 | 9.4 | 16.3 | 27 | 45 |
1000 | 17.5 | 2.8 | 6.2 | 10.8 | 18 | 30 |
750 | 13 | 2.2 | 4.7 | 8.2 | 13.5 | 22.5 |
63 | 1500 | 23.5 | 3.9 | 8.4 | 15.1 | 25 | 43 |
1000 | 15.5 | 2.6 | 5.6 | 10 | 16.5 | 28.5 |
750 | 12 | 2 | 4.2 | 7.5 | 12.5 | 21.5 |
71 | 1500 | 21 | 3.6 | 7.0 | 13 | 22 | 38 |
1000 | 14 | 2.4 | 4.5 | 8.5 | 15 | 25 |
750 | 10.5 | 1.8 | 3.5 | 6.5 | 11 | 19 |
80 | 1500 | 18.5 | 3.0 | 6.7 | 11 | 17 | 35 |
1000 | 12.5 | 2 | 4.5 | 7.3 | 11 | 23 |
750 | 9 | 1.5 | 3.3 | 5.5 | 8.5 | 17.5 |
90 | 1500 | 16.5 | 2.8 | 5.6 | 9.2 | 16 | 28 |
1000 | 11 | 1.8 | 3.7 | 6.1 | 10.5 | 18.5 |
750 | 8 | 1.4 | 2.8 | 4.6 | 8 | 14 |
100 | 1500 | 15 | 2.5 | 5.2 | 8.6 | 13 | 25 |
1000 | 10 | 1.6 | 3.4 | 5.7 | 8.6 | 16.5 |
750 | 7.5 | 1.3 | 2.6 | 4.3 | 6.5 | 12.5 |
115 | 1500 | 13 | 2.3 | 5 | 8.1 | 12 | 23 |
1000 | 8.5 | 1.5 | 3.3 | 5.4 | 8 | 1.5 |
750 | 6.5 | 1.2 | 2.5 | 4.1 | 6 | 11.5 |
128 | 1500 | 11.5 | 1.8 | 4.2 | 6.8 | 10.5 | 21 |
1000 | 7.5 | 1.2 | 2.8 | 4.5 | 7 | 14 |
750 | 5.5 | 0.9 | 2.1 | 3.4 | 5.3 | 11 |
145 | 1500 | 10 | 1.7 | 3.5 | 5.7 | 9.5 | 20 |
1000 | 6.5 | 1.1 | 2.3 | 3.8 | 6.3 | 13.3 |
750 | 5 | 0.85 | 1.8 | 2.9 | 4.7 | 11 |
160 | 1500 | 9 | 1.5 | 3.2 | 5.3 | 8 | 18 |
1000 | 6 | 1 | 2.1 | 3.5 | 5.3 | 12 |
750 | 4.5 | 0.75 | 1.6 | 2.6 | 4 | 9 |
注:配套電機功率:Nn≤容許功率÷2~2.5
3.連續工作型,減速器承載能力表
公稱傳動比i | 公稱傳速r/min | 規格 |
輸入n1 | 輸出n2 | 10 | 12 | 16 | 20 | 25 |
公稱輸入功率 P KW |
22.4 | 1500 | 66 | 6.28 | 15.84 | 23.68 | 48.6 | 57.6 |
1000 | 44 | 4.48 | 11.2 | 16.30 | 33.5 | 39.7 |
750 | 33 | 3.10 | 7.9 | 11.8 | 24.3 | 28.8 |
25 | 1500 | 60 | 5.89 | 15.18 | 23.57 | 42.6 | 53.4 |
1000 | 40 | 4.20 | 10.8 | 16.25 | 29.35 | 36.8 |
750 | 30 | 2.90 | 7.5 | 11.75 | 21.3 | 26.7 |
28 | 1500 | 53.5 | 5.26 | 13.05 | 20.31 | 40.2 | 49.1 |
1000 | 35.5 | 3.75 | 9.30 | 14.00 | 27.7 | 33.86 |
750 | 26.5 | 2.50 | 6.50 | 10.1 | 20.1 | 24.5 |
31.5 | 1500 | 47.5 | 5.19 | 11.53 | 18.16 | 35.4 | 45 |
1000 | 31.5 | 3.70 | 8.23 | 12.5 | 24.4 | 31 |
750 | 23.5 | 2.50 | 5.75 | 9.1 | 17.5 | 22.5 |
35.5 | 1500 | 42 | 4. 45 | 10.18 | 16.99 | 30.6 | 42 |
1000 | 28 | 3.20 | 7.1 | 11.7 | 21 | 21.85 |
750 | 21 | 2.20 | 5.1 | 8.5 | 15.3 | 21 |
40 | 1500 | 37.5 | 4.04 | 8.88 | 15.10 | 24.6 | 36 |
1000 | 25 | 2.75 | 6.1 | 10.4 | 16.9 | 24.8 |
750 | 18.3 | 2.00 | 4.4 | 7.5 | 12.3 | 18 |
45 | 1500 | 33 | 3. 44 | 7.83 | 12.91 | 22.2 | 32.4 |
1000 | 22 | 2 .4 | 5.45 | 8.9 | 15.3 | 21.7 |
750 | 16.5 | 1.7 | 3.9 | 6.45 | 11 | 16.2 |
50 | 1500 | 30 | 3.21 | 7.00 | 12.06 | 21 | 30.6 |
1000 | 20 | 2.2 | 4.8 | 8.31 | 14.5 | 21.10 |
750 | 15 | 1.60 | 3.5 | 6.00 | 10.5 | 15.3 |
56 | 1500 | 26.5 | 2.71 | 6.01 | 10.43 | 16.2 | 27 |
1000 | 17.5 | 1.9 | 4.13 | 7.15 | 11.15 | 18.6 |
750 | 13 | 1.30 | 3.00 | 5.2 | 8 | 13.5 |
63 | 1500 | 23.5 | 2.43 | 5.32 | 9.56 | 15 | 25.3 |
1000 | 15.5 | 1.70 | 3.60 | 6.55 | 10.3 | 17.4 |
750 | 12 | 1.2 | 2.65 | 4.75 | 7.5 | 12.6 |
71 | 1500 | 21 | 2.24 | 4.95 | 8.08 | 13.2 | 21.8 |
1000 | 14 | 1.5 | 3.41 | 5.5 | 9.1 | 15 |
750 | 10.5 | 1.1 | 2.5 | 4 | 6.6 | 10.5 |
80 | 1500 | 18.5 | 1.85 | 4.13 | 6.85 | 10.2 | 21 |
1000 | 12.5 | 1.3 | 2.8 | 4.72 | 7 | 14.4 |
750 | 9 | 0.9 | 2.0 | 3.4 | 5.1 | 10 |
90 | 1500 | 16.5 | 1.70 | 3.89 | 5.74 | 9.6 | 16.3 |
1000 | 11 | 1.1 | 2.68 | 3.9 | 6.6 | 11.20 |
750 | 8 | 0.8 | 1.94 | 2.85 | 4.8 | 8.15 |
100 | 1500 | 15 | 1.49 | 3.13 | 5.24 | 7.8 | 15 |
1000 | 10 | 1 | 2.15 | 3.5 | 5.35 | 10 |
750 | 7.5 | 0.72 | 1.56 | 2.6 | 3.9 | 7.5 |
115 | 1500 | 13 | 1.40 | 3.09 | 5.05 | 7.2 | 15 |
1000 | 8.5 | 0.95 | 2.10 | 3.45 | 4.9 | |
750 | 6.5 | 0.70 | 1.5 | 2.50 | 3.6 | |
128 | 1500 | 11.5 | 0.16 | 2.58 | 4.28 | 6.36 | 13.8 |
1000 | 7.5 | 0.75 | 1.78 | 2.90 | 4.35 | 9.5 |
750 | 5.5 | 0.55 | 1.25 | 2.14 | 3.15 | 6.9 |
145 | 1500 | 10 | 1.06 | 2.43 | 3.59 | 5.7 | 12 |
1000 | 6.5 | 0.70 | 1.67 | 2.45 | 3.9 | 8.25 |
750 | 5 | 0.50 | 1.2 | 1.75 | 2.85 | 6 |
160 | 1500 | 9 | 0.93 | 1.96 | 3.25 | 4.87 | 10.8 |
1000 | 6 | 0.65 | 1.35 | 2.2 | 3.35 | 7.4 |
750 | 4.5 | 0.45 | 0.95 | 1.62 | 2.4 | 5.4 |
注:配套電機功率:Nn≤容許功率÷2~2.5
4.減速器輸入軸至輸出軸的中心矩
型號 | 10 | 12 | 16 | 20 | 25 |
中心矩a | 225 | 280 | 355 | 470 | 580 |
5.公稱傳動比
公稱 | 22.4 | 25 | 28 | 31.5 | 35.5 | 40 | 45 | 50 | 56 |
63 | 71 | 80 | 90 | 100 | 114 | 128 | 145 | 160 |
